Traffic membrane vs epoxy on a suspended slab

There is one specification error in this trade that costs building owners more than every other mistake combined, and it usually starts with a sentence that sounds like prudence: the epoxy quote was cheaper. On a suspended parkade slab, choosing a rigid epoxy floor coating over an elastomeric traffic membrane does not save money. It defers a much larger bill — concrete repair, reinforcing steel corrosion, leak damage to whatever sits below — and hands it to whoever owns the building a few years later.

This article explains why the two products are not interchangeable, why the difference only matters on some slabs, and how the error keeps happening on tenders across BC. If you sit on a strata council or manage a commercial building with parking above other space, the twenty minutes this takes to read is disproportionately well spent.

Two different jobs

Why rigidity is the whole problem

Epoxy floor coatings are excellent at what they are actually for. Cured epoxy is hard, chemically resistant and wears well under traffic, which is why it earns its place on warehouse and industrial floors across the Lower Mainland. But that hardness is the point of failure on a moving slab: a cured rigid coating has effectively no ability to stretch across a crack that opens beneath it. When the slab cracks — and a suspended slab will — the coating cracks with it, along the same line, to the same width.

The insidious part is what the failure looks like, which is almost nothing. A hairline crack in a grey coating on a grey slab is invisible from standing height. The coating on either side of the crack is still bonded, still glossy, still passing every casual inspection. Meanwhile the crack is doing what cracks do: admitting every wash of salt water that crosses it, wetting the steel, season after season. By the time rust staining or spalled concrete announces the problem, the corrosion has been running for years and the repair has moved from a coating line item to a structural one — drip trays over parked cars below, sounding surveys, concrete removal around corroding bars.

A traffic membrane — more formally an elastomeric, typically polyurethane, vehicular traffic coating — is engineered around the opposite priority. It stays flexible after cure so it can bridge the hairline cracks that open and close beneath it, and it is installed as a waterproofing system: a primer, an elastomeric base coat that does the waterproofing, and one or more wear coats loaded with aggregate to take the traffic. Details are hand-worked at cracks, joints, drains, and upstands before the field coats go down. The systems we install come from the manufacturers whose names appear on parkade specifications across the province — Tremco's Vulkem line, BASF's MasterSeal Traffic systems, and Sika — selected against the deck, the exposure, and the traffic pattern rather than by habit.

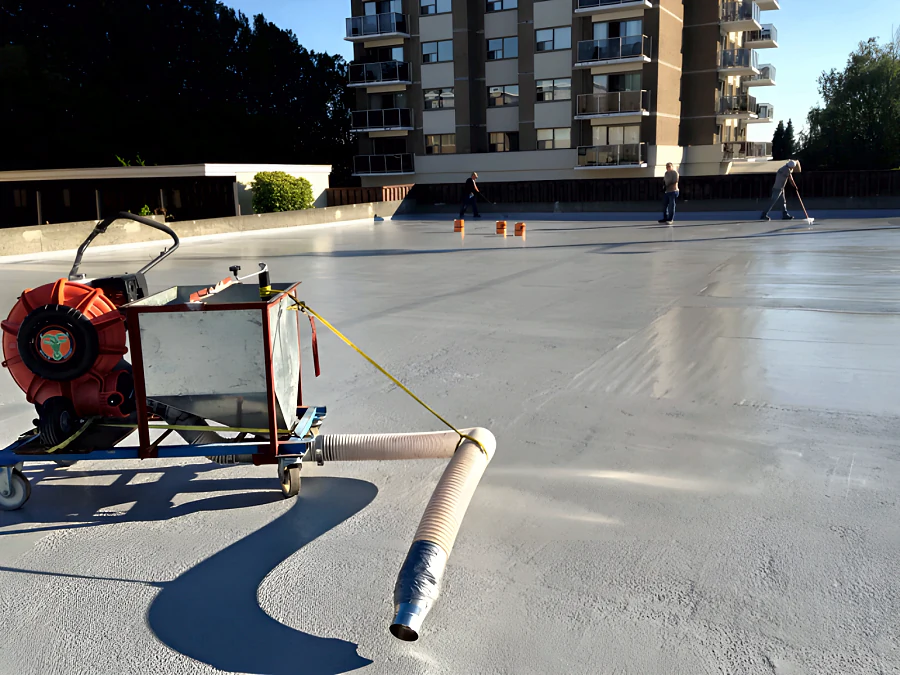

A flexible polyurethane traffic membrane, MasterSeal Traffic 1500 (formerly Sonoguard), going down on an exposed parkade deck in New Westminster in 2012: the blower-fed hopper for broadcasting aggregate, with the crew working the coat beyond (left), and the membrane carried across the deck, round the drain and up the parapet (right). More on our New Westminster page.

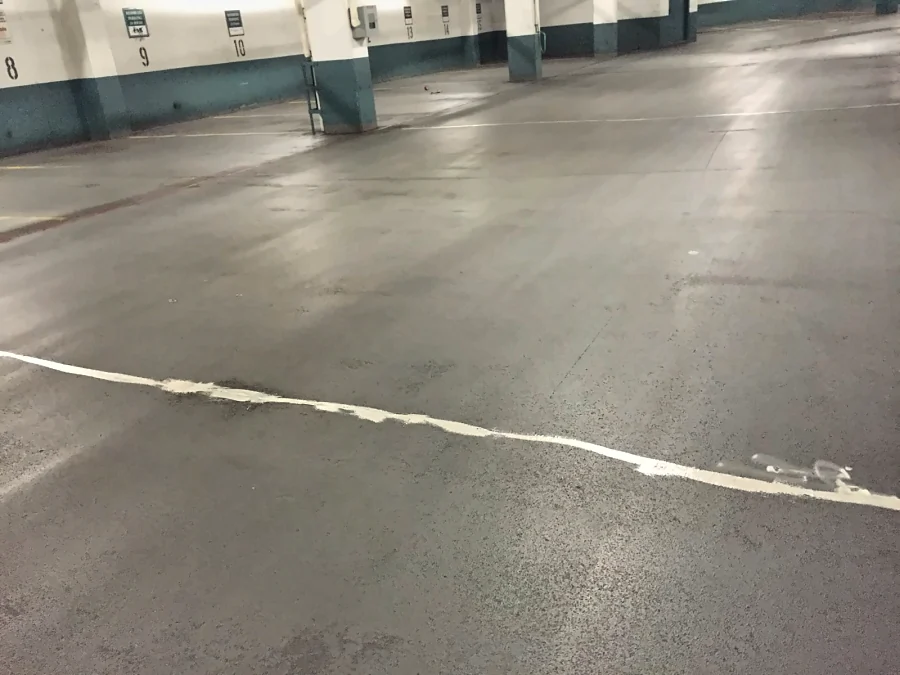

A Downtown Vancouver parkade, 2015: a crack filled across the drive aisle before coating (left), and the traffic coating going down the aisle (right). More of our work on the Vancouver page.

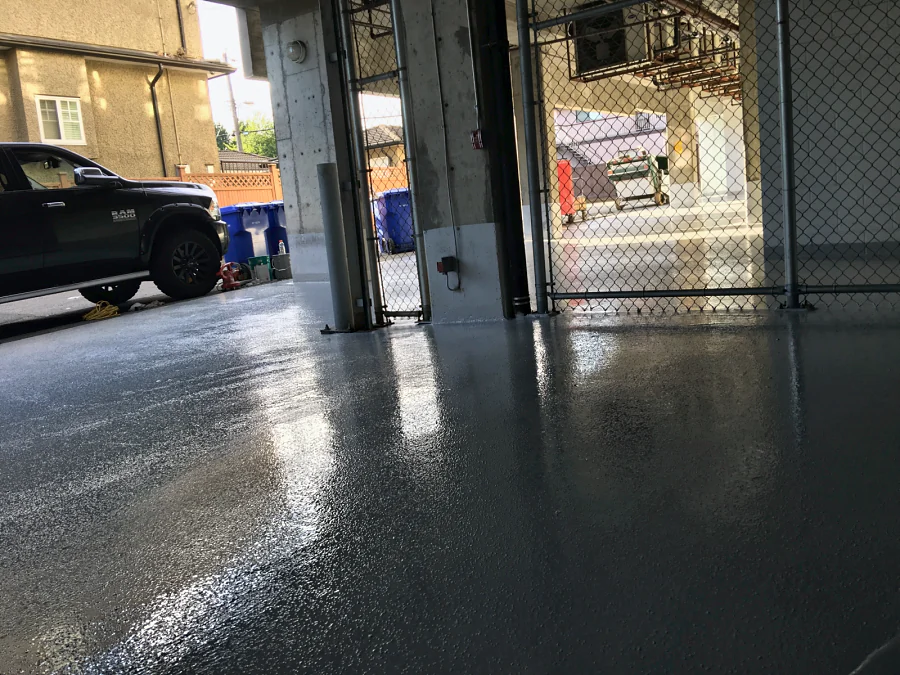

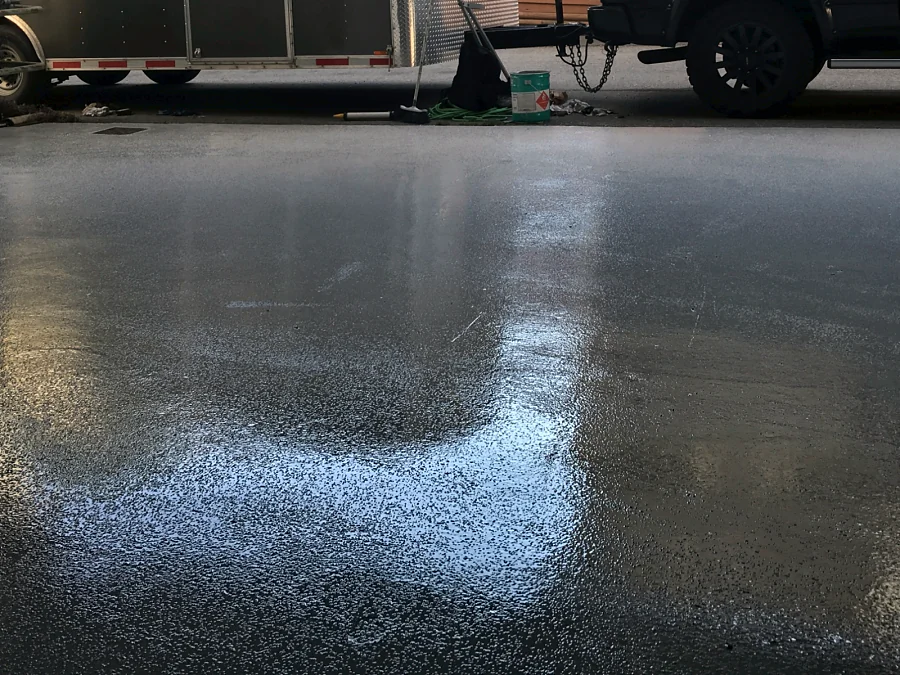

Tremco Vulkem 350NF/346 on a loading bay and garbage area in Vancouver: the fresh coat at the mouth of the bay (left), and laid round the column and the posts of the garbage enclosure (right). More on the projects page.

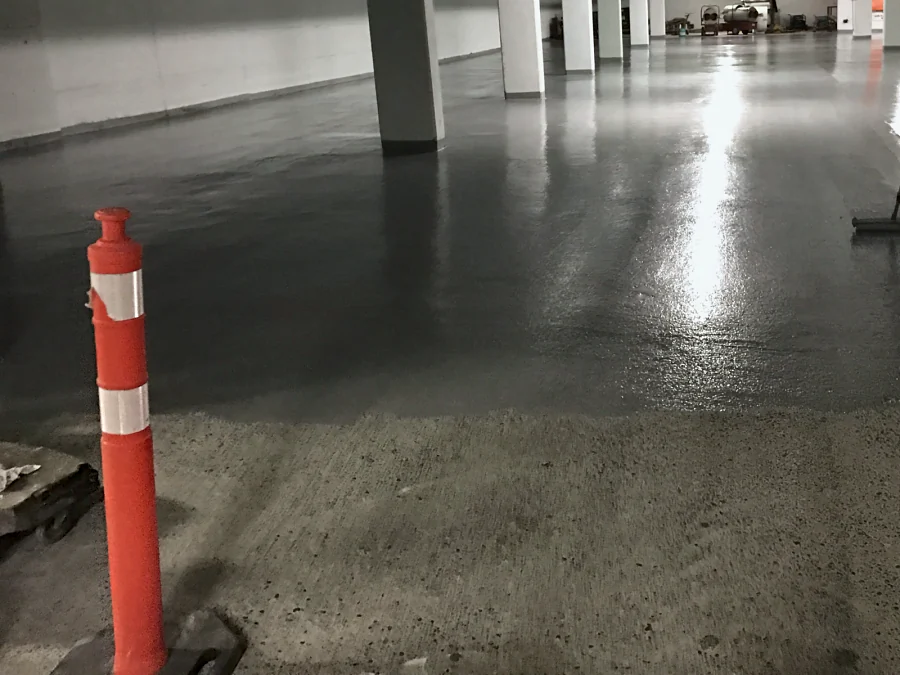

Tremco Vulkem 350NF/950NF/950NF through a 30,000 square foot parkade in Vancouver for Lark Group: the coat squeegeed across a parking level past the columns, the shot-blasted slab still bare in front (left), and a finished drive aisle (right). More on the projects page.

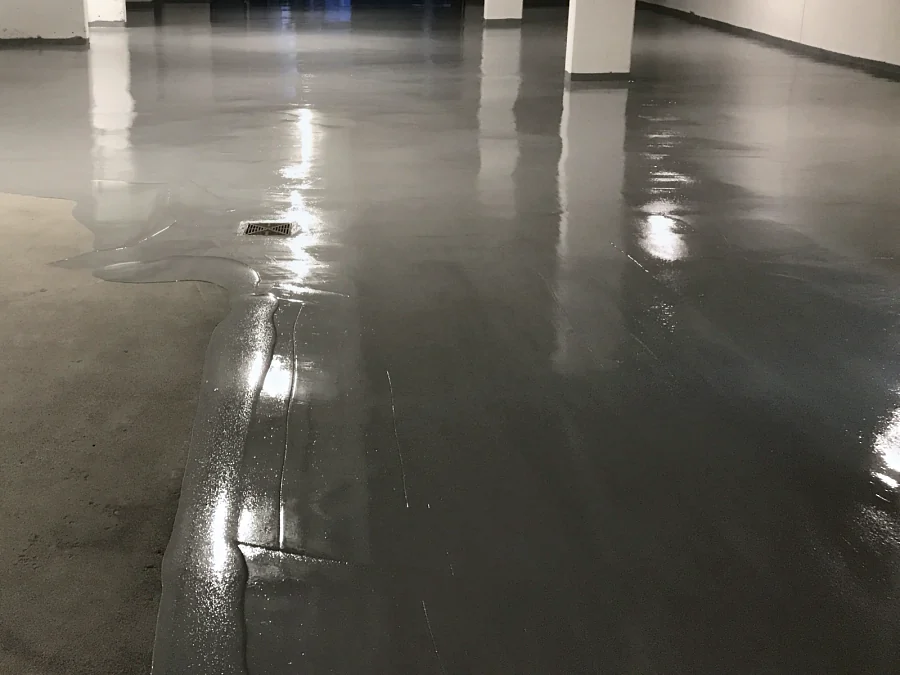

The same Tremco Vulkem 350NF/950NF/950NF system in a residential parkade in North Vancouver for Milori Homes, 2017: the grey coat flowing out over the bare slab and round the floor drain (left), and the textured coat down the drive aisle (right). More on the projects page.

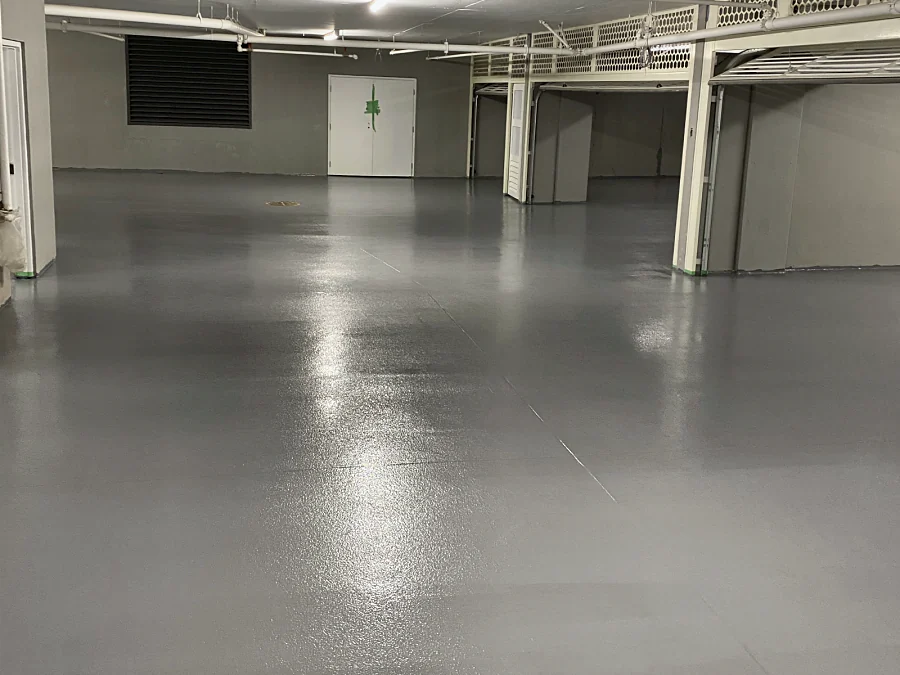

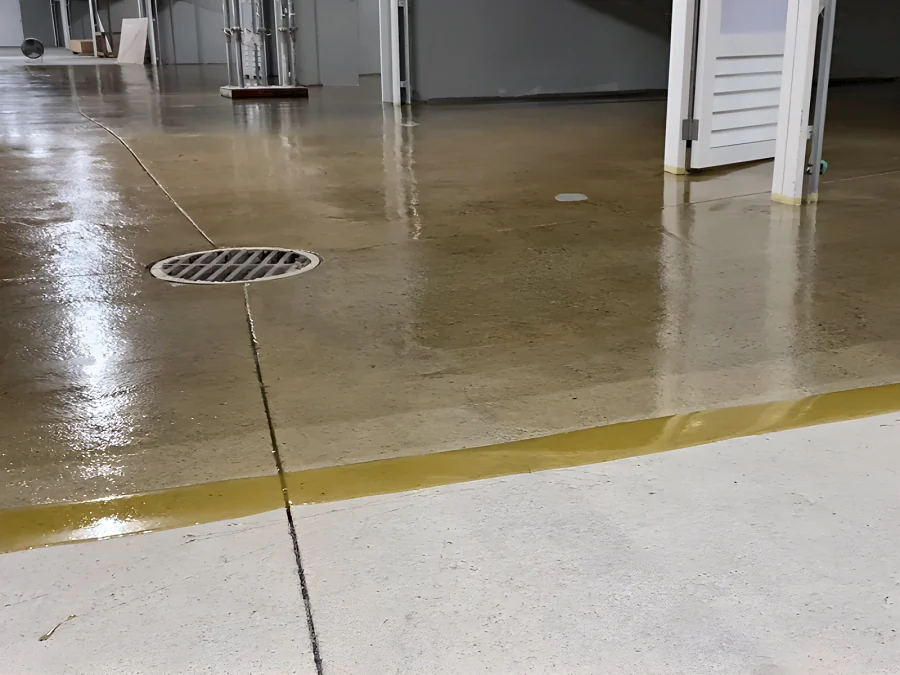

A Tremco traffic coating through the 68,000 square foot parkade at 2289 Bellevue Avenue, West Vancouver, for Cressey Development Group in 2020: the first coat going across the bare concrete past a floor drain (left), and a finished level to the double doors (right). More on the projects page.

The same Tremco family again, Vulkem 350NF/950NF/951NF, through a residential tower’s parkade in New Westminster for PMC Construction: the coat across the half-open deck, tarped while it cured (left), and turned up the columns as a coved base (right). More on the projects page.

How it keeps happening

Anatomy of the error, tender by tender

Nobody chooses this failure on purpose. It arrives through the paperwork. A tender goes out asking for a price on "parkade floor coating" without naming the slab type. One bidder prices the membrane the suspended levels need; another prices an epoxy broadcast system, which comes in meaningfully cheaper per square foot because it is doing a smaller job. On paper the two numbers sit in the same column of a comparison spreadsheet as though they describe the same work. The lower number wins, and the error is now cast in place for a decade.

The moment it goes wrong is almost never the installation. The epoxy goes down cleanly, looks sharp at handover, and photographs well. The moment it goes wrong was earlier, in the sentence the tender never contained: what is under this slab, and what happens to the space below when water gets through? Any bid comparison that does not answer that question first is comparing prices on two different products, one of which cannot do the job.

This is also where climate stops being background. A parkade in the Lower Mainland sees salt every winter; on the Sea-to-Sky the exposure is harsher again, with hard freezes right through the winter. The wetter and saltier the service, the faster a cracked rigid coating converts into a corrosion problem, and the stronger the case for a membrane detailed to the deck it is on.

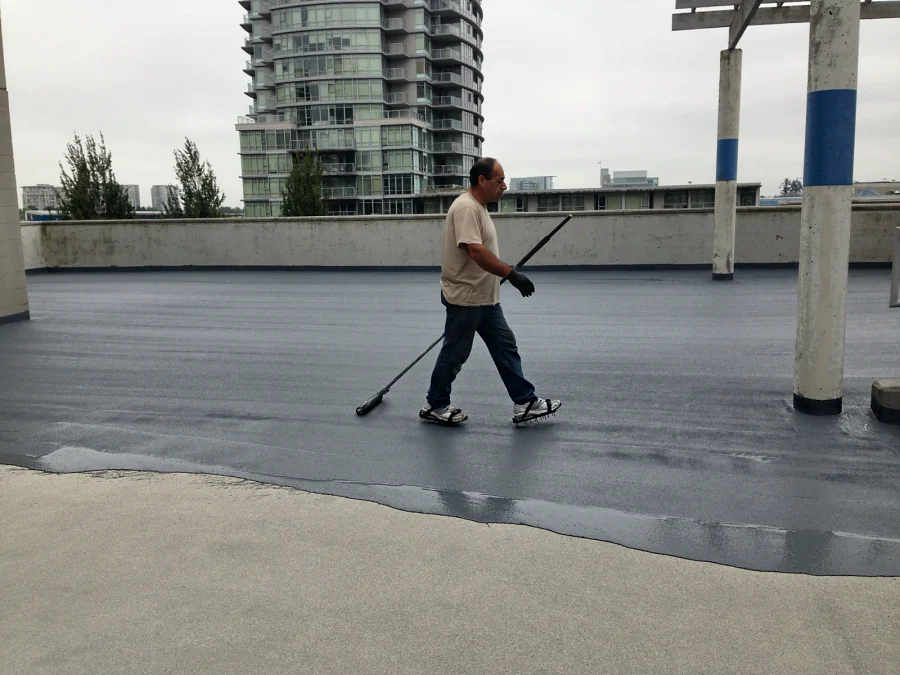

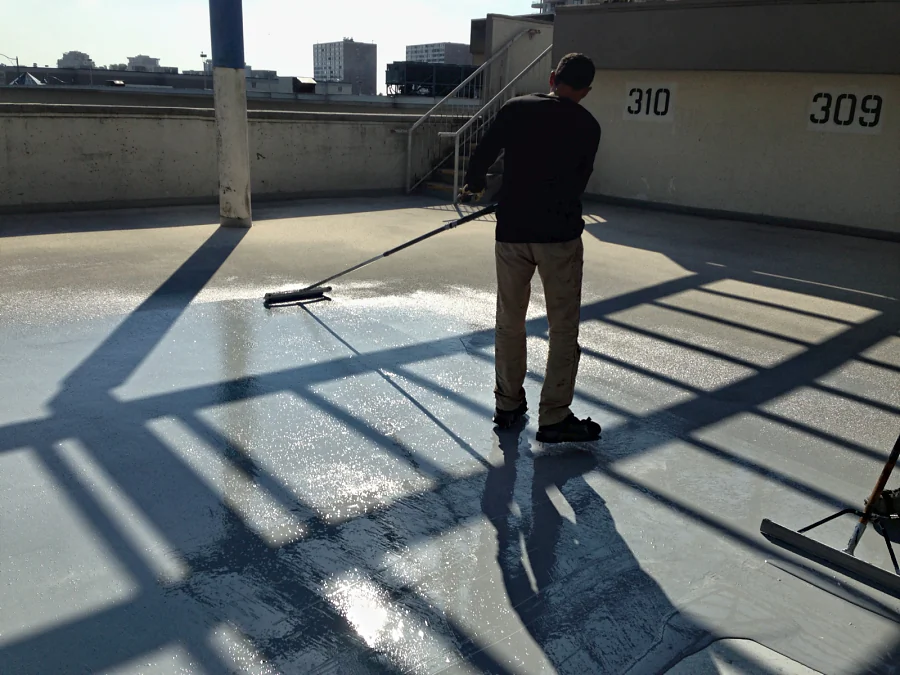

A roof deck takes the weather directly. The open top level of the Three West Centre parkade in Richmond, 2013: the grey coat spread by squeegee across the deck (left), and a darker textured coat rolled out over it (right). More of our work on the Richmond page.

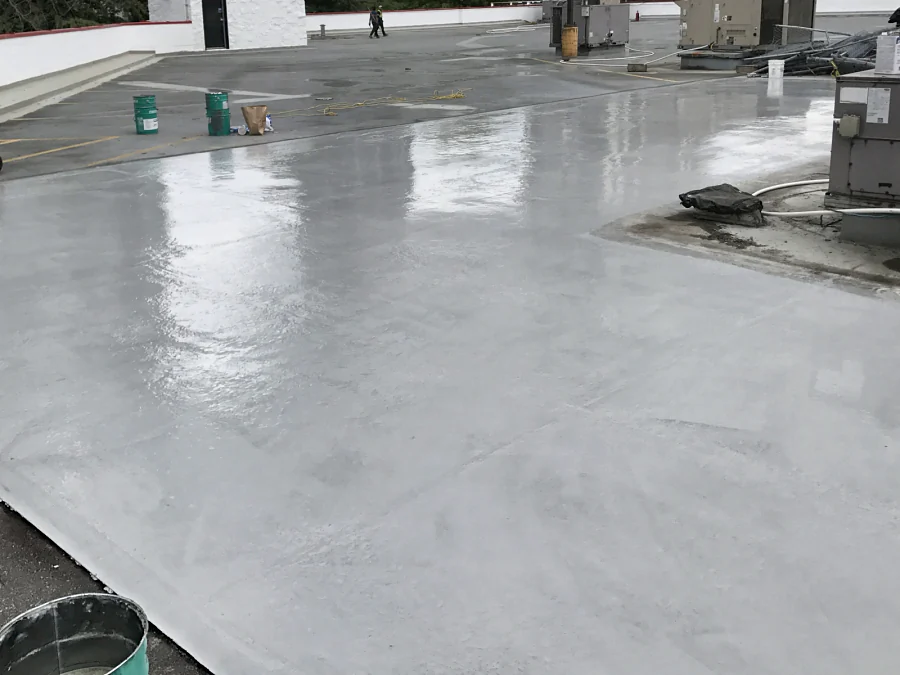

Another roof exposed to the weather: the rooftop customer parkade of a Staples store in Burnaby, 2017, in the Tremco Vulkem 350NF/950NF/951NF system, the fresh coat by the rooftop units (left), and the finished deck (right). More on the projects page.

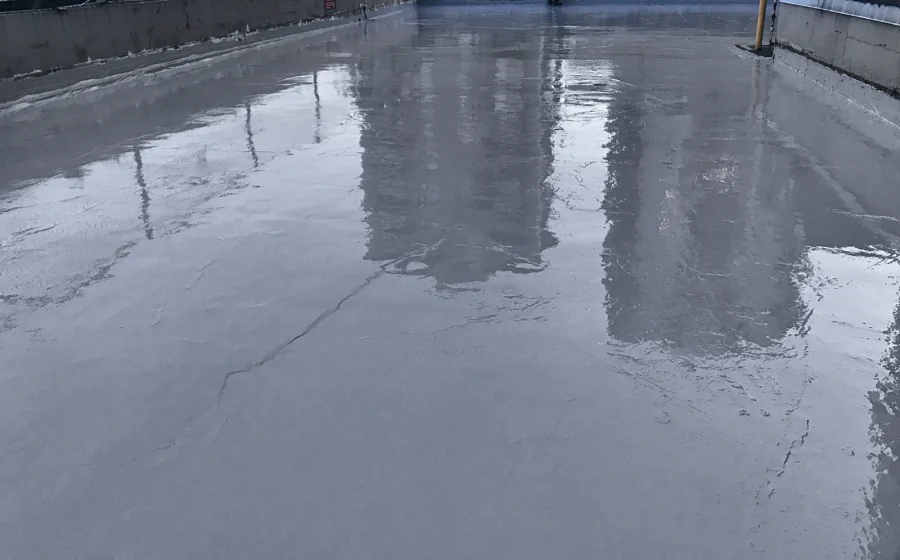

Another exposed deck, a hotel’s exterior parkade deck in the West End, Vancouver: the dense network of cracks repaired (left), then Tremco Vulkem 360NF/346 laid over them (right). More on the projects page.

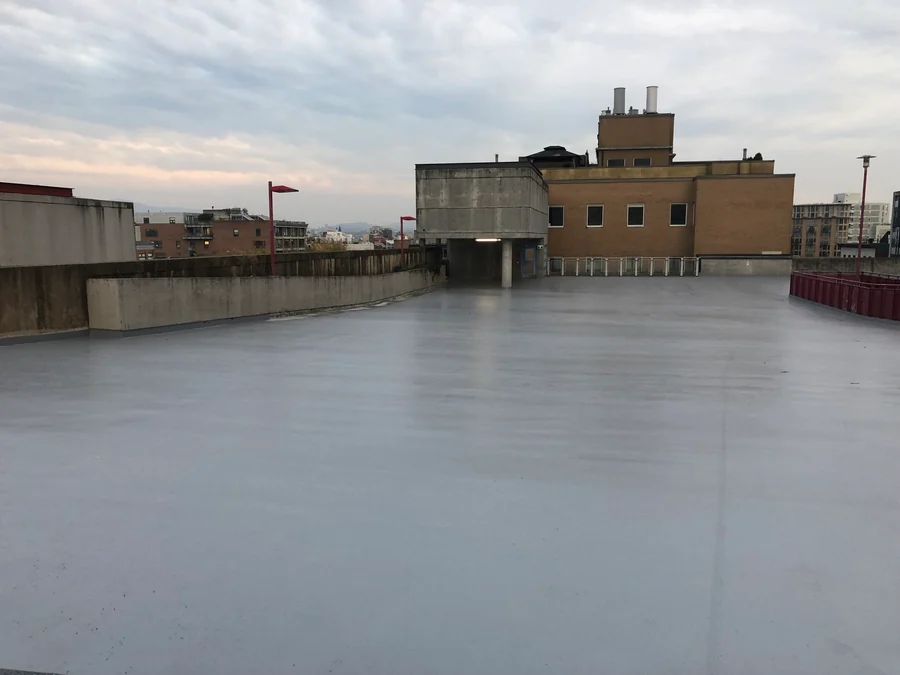

A roof deck recoated rather than patched: the 50,000 square foot top deck of the Gastown parkade in Vancouver, its old coating removed and the deck relaid in Tremco Vulkem 350NF/950NF/951NF for Heatherbrae Builders, grey and even to the stair tower (left) and at dusk (right). More on the projects page.
